Foldable steel wire mesh box/Foldable steel wire mesh/Foldable metal wire container/Mobile safety cage kit/Foldable galvanized steel storage box
Foldable steel wire mesh box/Foldable steel wire mesh/Foldable metal wire container/Mobile safety cage kit/Foldable galvanized steel storage box
storage cage, also known as warehouse cage and butterfly cage, is a kind of storage equipment, and it is also a kind of logistics container which is very important in storage and transportation. The general storage cage has the advantages of fixed storage capacity, neat stacking, clear storage, easy inventory, etc., it also improves the efficiency of the use of storage space.
Wire Mesh Container
Product Parameters
Brand ALLWORLD
series storage cage
Name Foldable Wire Cage
material low carbon steel Q235
size can be customized

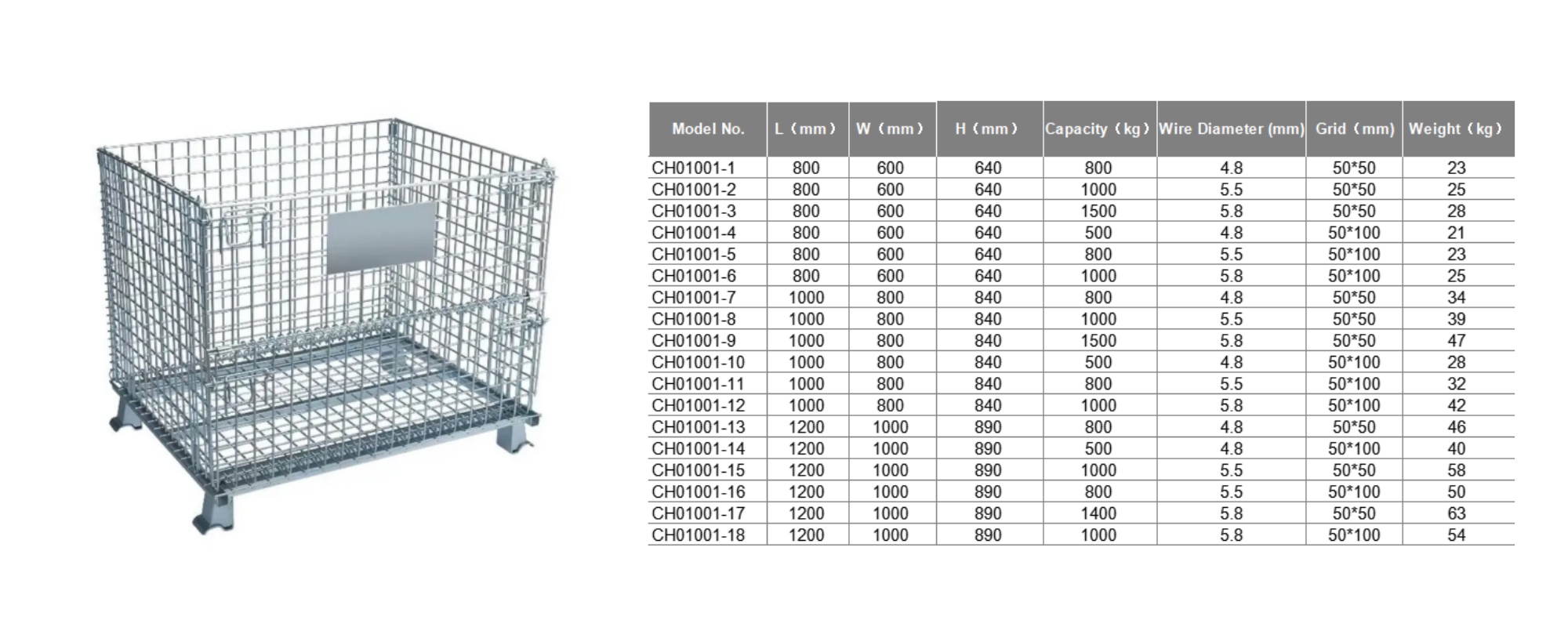

| Item | (L*W*H)mm | DIA(mm) | Mesh(mm) | Volume(m³) | Capacity(Kg) |
| CH01001 | 1200*1000*840 | ￠ 5.0 | 50*50 | 0.84 | 800 |
| CH01002 | 1200*1000*840 | ￠ 5.5 | 50*50 | 0.84 | 1000 |
| CH01003 | 1200*1000*840 | ￠ 6.0 | 50*50 | 0.84 | 1300 |
| CH01004 | 1200*1000*840 | ￠ 5.0 | 50*100 | 0.84 | 800 |
| CH01005 | 1200*1000*840 | ￠ 5.5 | 50*100 | 0.84 | 800 |
| CH01006 | 1200*1000*840 | ￠ 6.0 | 50*100 | 0.84 | 1000 |
| CH01007 | 1000*800*840 | ￠ 5.0 | 50*50 | 0.52 | 800 |
| CH01008 | 1000*800*840 | ￠ 5.5 | 50*50 | 0.52 | 1000 |
| CH01009 | 1000*800*840 | ￠ 6.0 | 50*50 | 0.52 | 1500 |
| CH01010 | 1000*800*840 | ￠ 5.0 | 50*100 | 0.52 | 500 |
| CH01011 | 1000*800*840 | ￠ 5.5 | 50*100 | 0.52 | 800 |
| CH01012 | 1000*800*840 | ￠ 6.0 | 50*100 | 0.52 | 1000 |
| CH01013 | 1000*800*840 | ￠ 6.0 | 100*100 | 0.52 | 800 |
| CH01014 | 800*600*640 | ￠ 5.0 | 50*50 | 0.22 | 800 |
| CH01015 | 800*600*640 | ￠ 5.5 | 50*50 | 0.22 | 1000 |
| CH01016 | 800*600*640 | ￠ 6.0 | 50*50 | 0.22 | 1500 |
| CH01017 | 800*600*640 | ￠ 5.0 | 50*100 | 0.22 | 500 |
| CH01018 | 800*600*640 | ￠ 5.5 | 50*100 | 0.22 | 800 |
| CH01019 | 800*600*640 | ￠ 6.0 | 50*100 | 0.22 | 1000 |
| CH01020 | 1200*1000*890 | ￠ 5.0 | 50*50 | 0.85 | 800 |
| CH01021 | 1200*1000*890 | ￠ 5.0 | 50*100 | 0.85 | 500 |
| CH01022 | 1200*1000*890 | ￠ 5.5 | 50*50 | 0.85 | 1000 |
| CH01023 | 1200*1000*890 | ￠ 5.5 | 50*100 | 0.85 | 800 |
| CH01024 | 1200*1000*890 | ￠ 6.0 | 50*50 | 0.85 | 1400 |
| CH01025 | 1200*1000*890 | ￠ 6.0 | 50*100 | 0.85 | 1000 |
| CH01026 | 1200*800*800 | ￠ 5.0 | 70*70 | 0.74 | 1000 |
| CH01027 | 1200*800*800 | ￠ 6.0 | 70*70 | 0.74 | 1000 |
Wire Mesh Container
Product Details

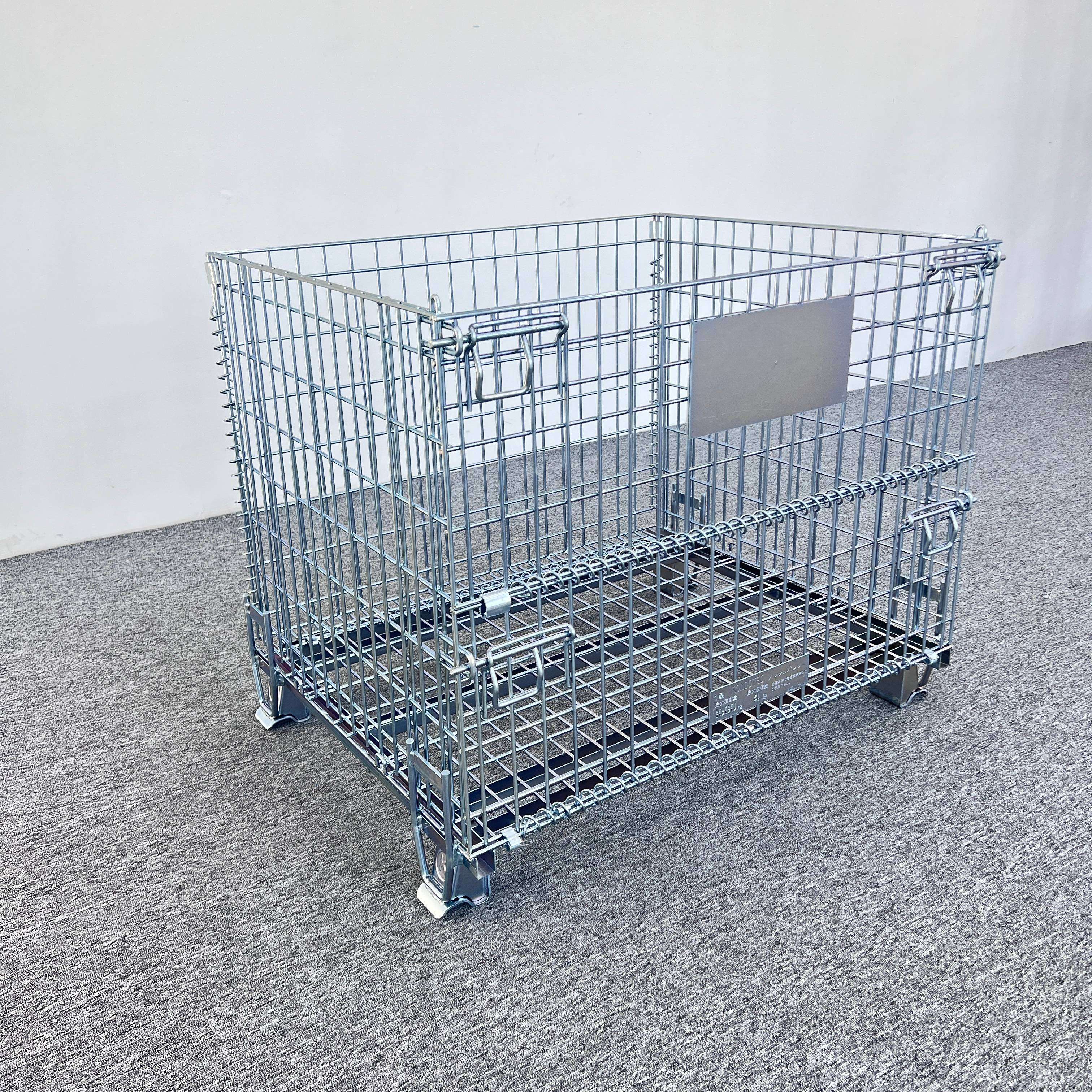

- Convenient loading and unloading: equipped with a door design, easy to quickly access the goods, improve the efficiency of the operation.

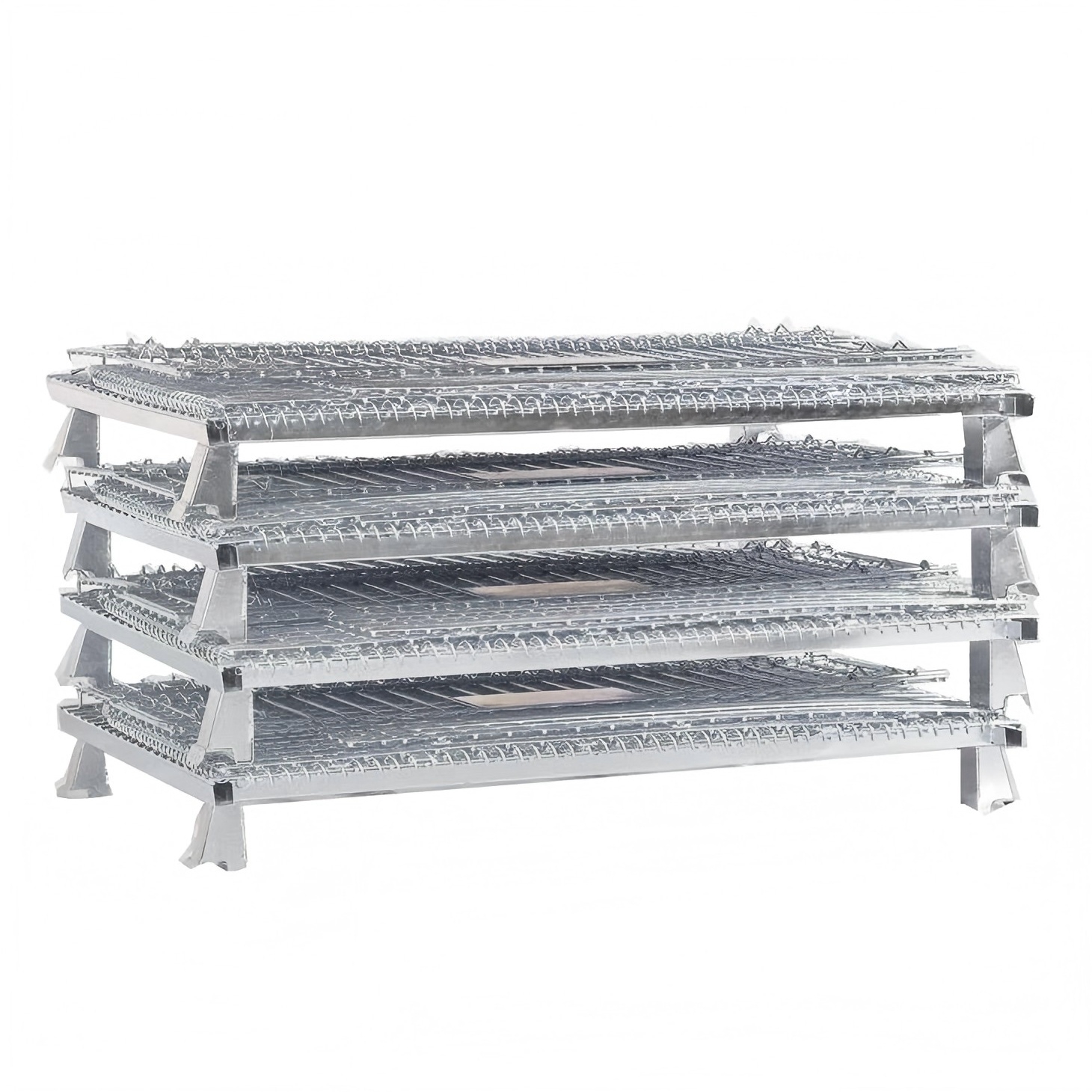

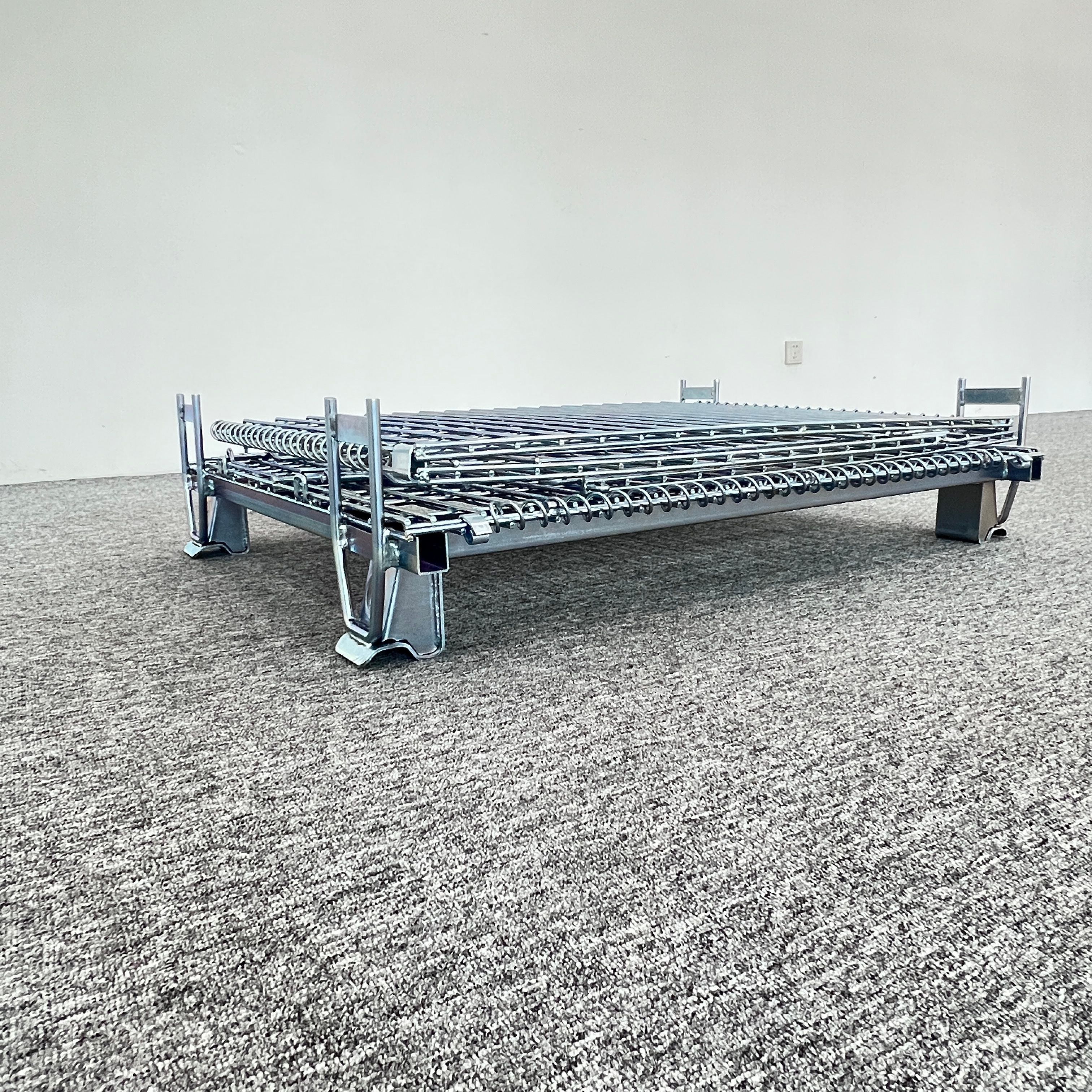

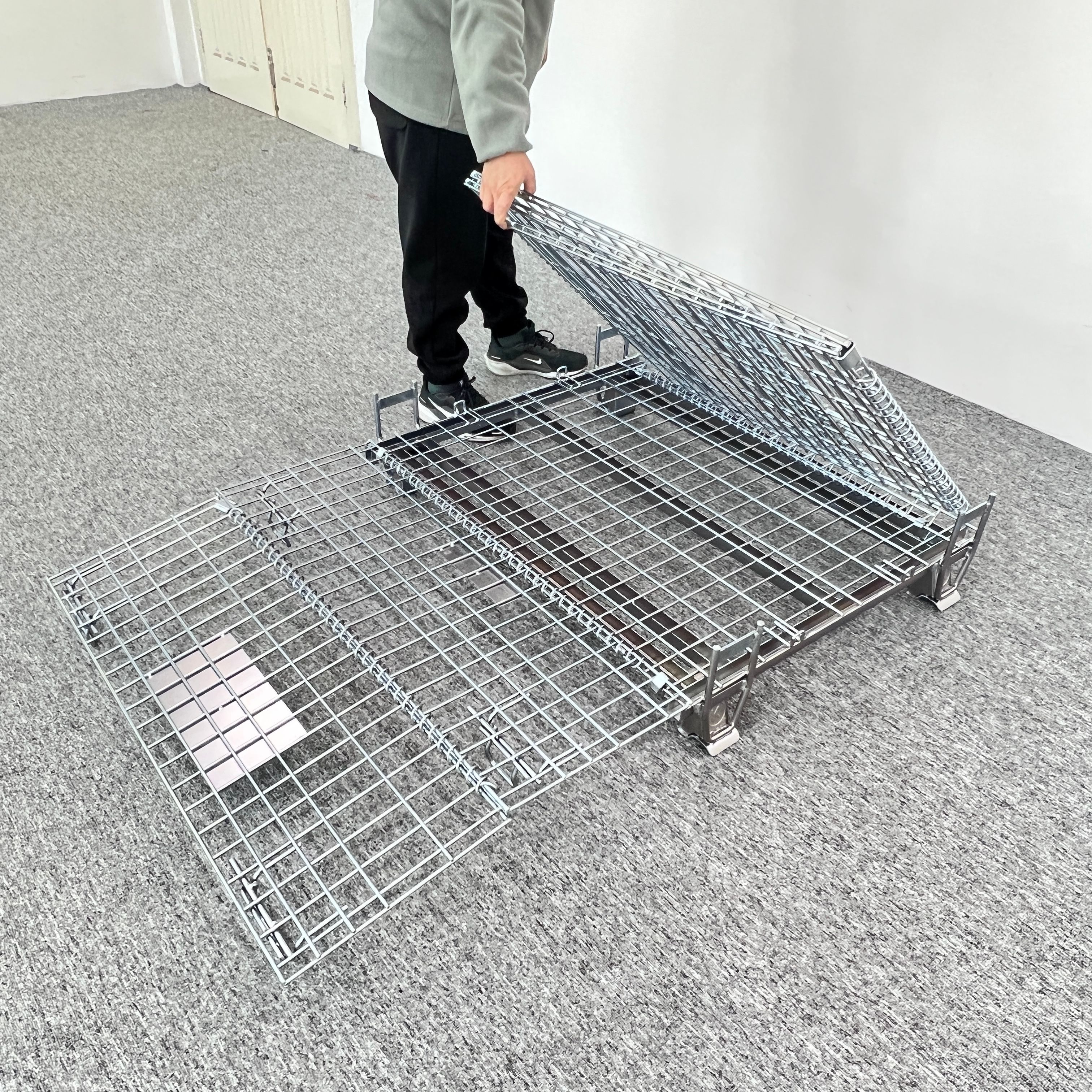

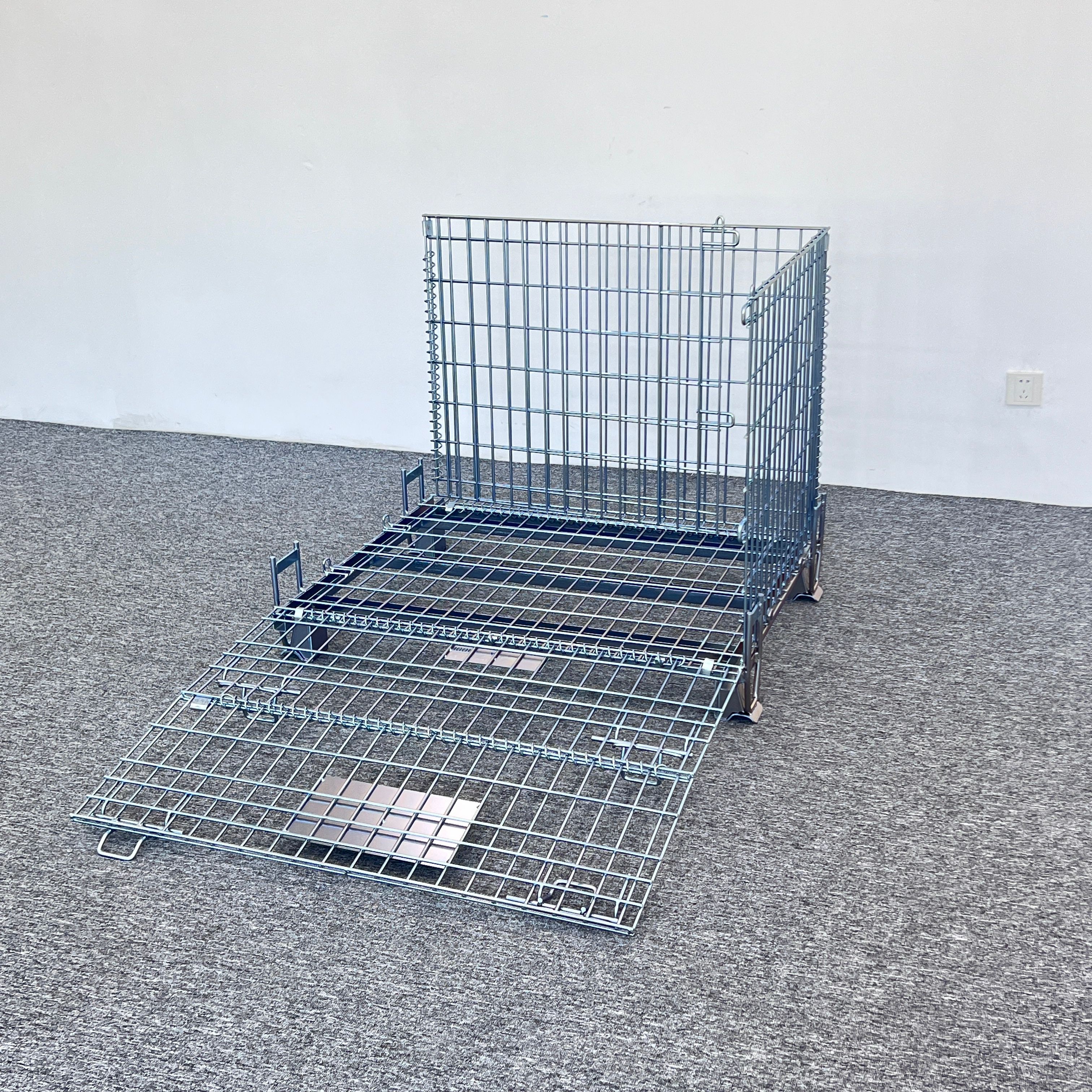

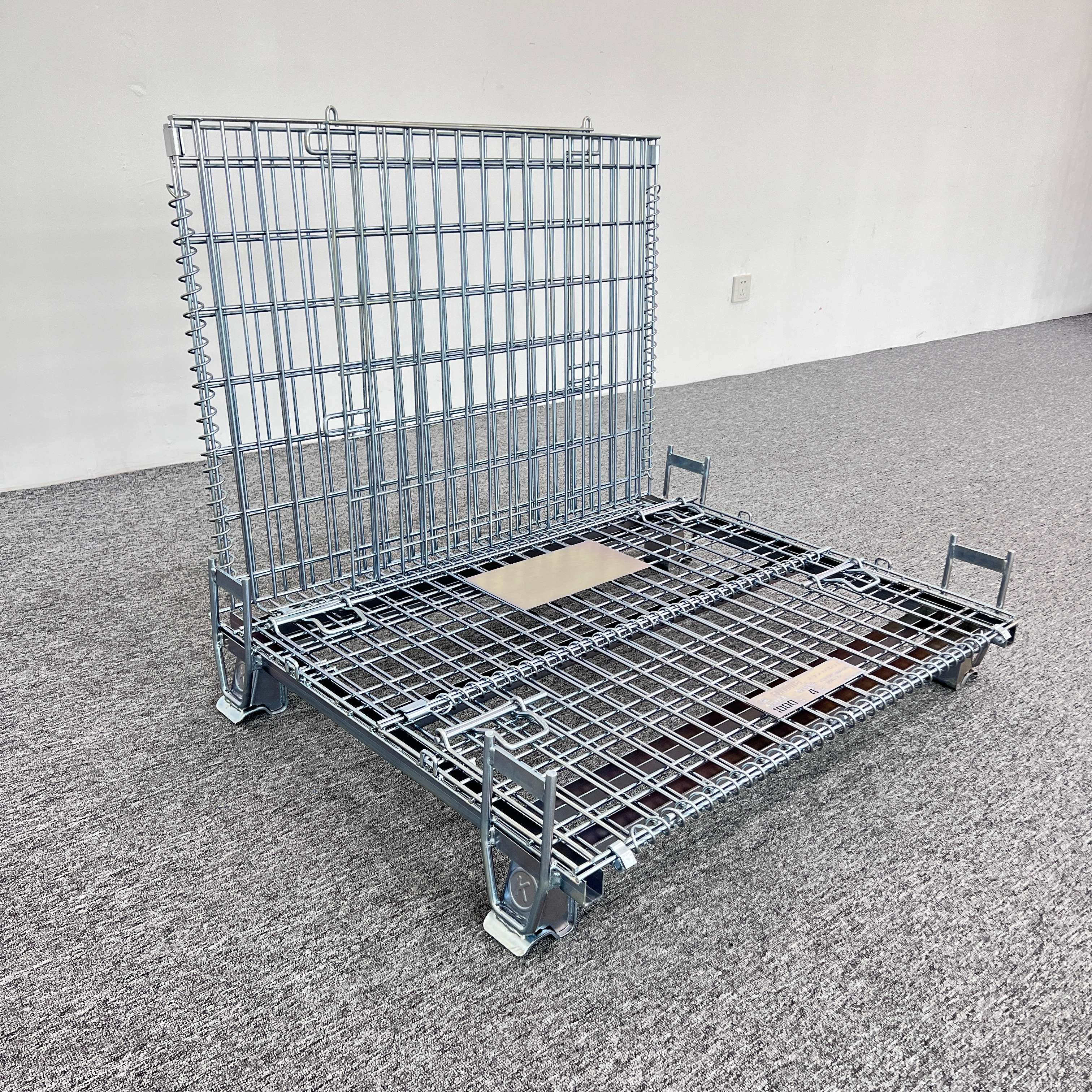

- Space saving: easy to stack and fold, effectively reduce the storage space occupied and reduce storage costs.

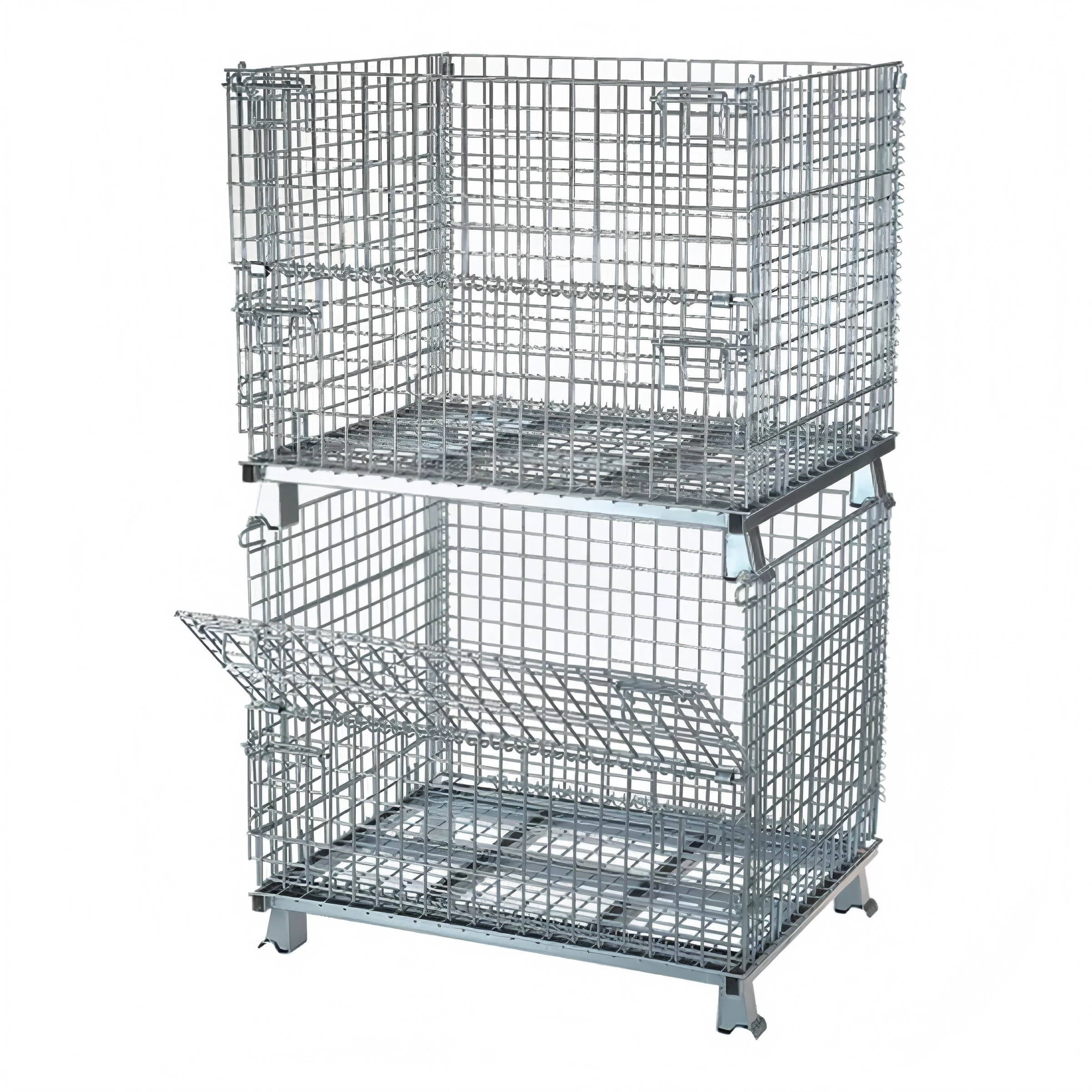

- stable stacking: multi-level stacking at full load, up4 layers to optimize space utilization.
- Flexible movement: The solid base is equipped with forklift slots to support easy movement of forklifts or pallet trucks and improve logistics efficiency.
- Environmental protection materials: the use of recyclable steel wire materials, in line with the concept of environmental protection, reduce environmental impact.
- customization service: provide customized size options to meet the individual needs of different customers.
- Multi-functional accessories: can be matched with partitions, casters, identification labels and other accessories to enhance the practicality and recognition of the container.
- Durability: The well-designed metal mesh structure ensures durability and reliability for long-term use.
- Safety standards: comply with industry safety standards to ensure the safety of goods and operators.
- Easy to clean: smooth surface treatment, easy to clean and maintain, keep the storage environment clean and tidy.
